The Embedded Engineer’s Place in an AI-Driven World

The Embedded Engineer’s Place in an AI-Driven World

It’s impossible to ignore, the, headlines. Every week, a new AI model seems to be released that can write code, fix bugs, and even build entire applications from a single prompt. We see impressive demos from Google, OpenAI and others, and it’s natural to ask the question on every developer’s mind: “Will an AI take my job?”

Programming vs. Engineering

Let’s be clear: the anxiety around AI is not unfounded. The act of programming—translating a well-defined requirement into code—is becoming increasingly automated. We see this with tools like GitHub Copilot becoming a standard part of the developer workflow, and companies like Cognition Labs with their AI agent Devin are pushing the boundaries of what’s possible. For tasks with clear inputs and outputs, like building a standard CRUD API or a simple web form, AI is incredibly effective because it excels at pattern matching on a massive scale.

This is a good thing. It frees us from rote work. But it’s crucial to distinguish this from the broader discipline of engineering. Engineering isn’t just writing code. It’s the messy, human process of architecting systems, making trade-offs, diagnosing emergent behavior, and maintaining critical systems over time. It’s about asking the right questions—a process that can take months—before a single line of code is written. What are the concurrency trade-offs for this database design? How do we scale this backend for a 100x increase in traffic? Should we scale now, or are we overprovisioning? An AI can’t answer these questions because the answers depend on business context, future goals, and deep systems knowledge.

This is where the future lies: not in being a better coder than an AI, but in being a better engineer who uses AI to offload tedious work. This distinction is vastly more apparent in the world of embedded systems.

War Stories

An AI can write a Python script to parse a file because it has seen a million examples. But can it debug a system where a single flipped bit in memory leads to catastrophic failure? This is where an embedded engineer’s real value lies. Here are a few examples from the real world.

Toyota’s Unintended Acceleration

Source

For years, Toyota faced reports of its cars accelerating without driver input. The initial blame was placed on floor mats. The real culprit, however, was a ghost in the machine. Expert testimony in court cases revealed critical flaws in the engine control unit’s firmware. The issues weren’t simple bugs; they were complex system failures like stack overflow, where memory management fails and causes unpredictable behavior. Critical tasks could be disabled by other tasks, and the code was riddled with thousands of global variables, creating a “spaghetti code” nightmare. An AI could not have debugged this. It required engineers with a deep understanding of real-time operating systems, memory management, and safety-critical coding standards (like MISRA C) to painstakingly trace the complex interactions that could lead to the throttle control system failing in an unsafe state.

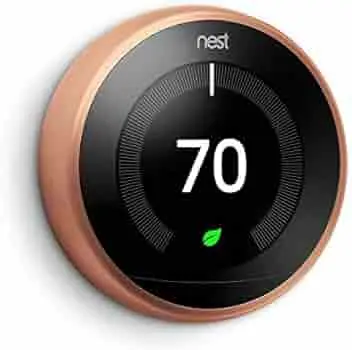

Bricking Nest

Source

In 2016, a faulty firmware update rendered thousands of Nest smart thermostats unresponsive, effectively “bricking” them in the middle of winter. The problem wasn’t a server outage; it was a deep-seated embedded bug. The issue was reportedly a flaw in the device’s sleep/wake algorithm. When the device woke for routine tasks, the bug sometimes prevented it from returning to a proper low-power state, causing the battery to drain completely. Once drained, the device couldn’t function or even recharge itself. This is a classic embedded problem. An AI might write a sleep algorithm, but debugging it requires measuring micro-amps of current with an oscilloscope, understanding the power state transitions of every component on the board, and correlating that physical data with the software’s execution. It’s a perfect blend of hardware and software detective work.

Ariane 5

Source

One of the most famous software failures in history was the explosion of the Ariane 5 rocket just 40 seconds into its maiden flight in 1996. The cause was a single, catastrophic software error detailed in the official inquiry board report. Engineers had reused code from the slower Ariane 4 rocket that converted a 64-bit floating-point number representing the rocket’s horizontal velocity into a 16-bit signed integer. On the faster Ariane 5, the velocity value was much larger than the Ariane 4’s, and the number became too big for the 16-bit integer to hold. This caused an integer overflow, which the system interpreted as a flight path error. The rocket’s software did exactly what it was told to do with the bad data: it swiveled the nozzles to “correct” the non-existent problem, causing the rocket to veer off course and self-destruct. An AI, without the full system context, might see the data conversion code as correct in isolation. It took human engineers to understand the new physical constraints of the Ariane 5 and realize that the reused code was no longer valid.

Systems Endingeering

The war stories above highlight the true nature of embedded work: it is fundamentally systems engineering. An embedded engineer’s “IDE” isn’t just a text editor; it’s a collection of tools and documents that bridge the digital and physical worlds. To solve a problem, you must look far beyond the code itself.

• The Schematic: You have to read hardware blueprints to understand which processor pin connects to which LED, sensor, or motor driver. Is a pull-up resistor missing? Is the I2C bus shared? The answer isn’t in the code; it’s on the schematic.
• The Datasheet: A 1,000-page microcontroller datasheet is your bible. It contains the “API documentation” for the hardware. You need to understand the precise sequence of register writes to configure a peripheral, the timing constraints for a memory interface, or the exact current draw in different low-power modes.
• The Oscilloscope & Logic Analyzer: Your debugger isn’t just GDB. It’s a physical probe that lets you see electrical signals in real-time. Is a signal noisy? Is there a voltage drop when a motor turns on? Is the timing of an SPI signal meeting the spec? These are questions code cannot answer.
• The Laws of Physics: You can’t escape physics. Code that works perfectly on a dev board might fail in a hot engine bay due to thermal issues. A long wire might act as an antenna, picking up noise that corrupts your sensor data. Power consumption, heat dissipation, and signal integrity are your constant companions.

An AI can’t hold an oscilloscope probe, read a thermal camera, or understand the nuance of a datasheet that contradicts a schematic. The job of an embedded engineer is to synthesize information from all these disparate, messy, real-world sources. That is not programming; that is true systems engineering.

The future isn’t about competing with AI; it’s about leveraging it. We should welcome AI as a powerful assistant, and incredible tools already exist to handle the tedious parts of our job:

• Large Language Models: General-purpose LLMs like Gemini, ChatGPT, and Claude are fantastic for deep research and getting a second opinion on architectural decisions. With their vision capabilities, they can even analyze a screenshot from your oscilloscope or logic analyzer and help decode a complex timing diagram.
• Document-Grounded AI: Tools like NotebookLM or ChatPDF are game-changers for our line of work. You can upload a 1,000-page datasheet and start asking specific questions, like “What is the exact sequence to enable the ADC?” or “Summarize all low-power modes.” It turns a day of document searching into a 5-minute conversation.
• Hardware-Aware AI: Emerging tools like Flux Copilot are being built specifically for hardware design. They can help analyze schematics, suggest components, and even help debug PCB layouts, augmenting the physical side of our engineering work.
• RTOS-Aware Analysis: Specialized tools like Percepio Tracealyzer use sophisticated visualization and algorithmic analysis to find complex bugs in RTOS-based systems. They can automatically spot issues like priority inversion and task deadlocks that are nearly impossible to find with traditional debuggers.

This frees us up to focus on the work that truly matters: the complex, multi-disciplinary engineering that AI can’t touch. It allows us to spend more time with an oscilloscope, more time architecting a fault-tolerant system, and more time understanding the deep physics of the problem we’re trying to solve. In an age where routine programming can be automated, the systems-level detective work of an embedded engineer is not only secure, it’s more valuable than ever.
